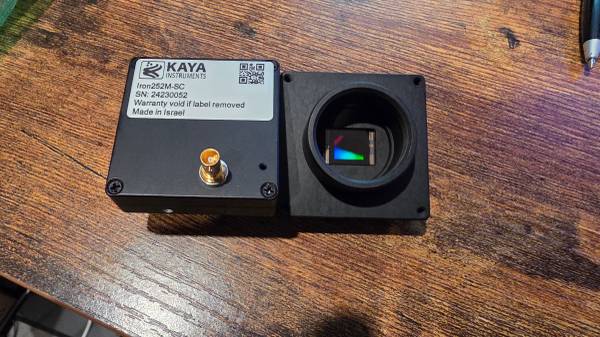

NEW Kaya Iron 252M-SC SFF CMOS camera CoaXPress 12G 3.19 MP 205 FPS - $100 (Kalispell)
QR Code Link to This Post
$100 each
Intelligent Design – This Iron camera incorporates Sony Pregius IMX252 global shutter sensor with 3.45µm pixel size. With a compact outline and low power design this camera can be fitted into tight spaces. Superior sensor performance allows very low light vision capabilities.
The CoaXPress interface allows high-speed data transmission for digital imaging in machine vision applications, faster than other standards, such as Camera Link or GigE Vision. Our CoaXPress Iron robust cameras are ideally suited for industrial and aerospace machine vision systems. With dimensions of 44 x 44 x 35 .3 mm, The Iron 252 CoaXPress ruggedized camera is designed to fit very small places. The wide range of operating temperatures, spanning from -40°C to 70°C, enables it to function under severe environmental conditions. The high resolution of 2048 x 1536 provides a sensitive high-quality video output at a high speed that would meet almost any need.
3.15 Megapixel up to 205.8 fps
Monochrome and Color models
Up to 3.2W power at full rate
Full image processing feature set
Up to 12.5 Gbps CoaXPress interface
C-Mount and CS-Mount are available
Full EMVA1288 report
Full built-in self-test (BIT)
Full built-in voltage testing
Customization as per user requirements
Wide temperature range
Vibration resistant
Perimeter vision
3D
Low light surveillance
Special Effects
VR
Pixel Size 3.45 µm x 3.45 µm
Resolution 2048 (H) x 1536 (V)
Sensor Size 8.9 mm diagonal
Sensor Sony Pregius IMX252 CMOS sensor
Output Interface 6.25 Gbps CoaXPress 1.1, 12.5 Gbps CoaXPress v2.0
Interface Connector Micro-BNC
Output Resolution 8, 10 or 12 bit
Max Frame Rate 205.8 fps @8 bit resolution
176.4 fps @10 bit resolution
112.3 fps @12 bit resolution
Image Acquisition Continuous / Triggered
Camera Control GenCam
Electronic Shutter Global shutter
Monochrome / Color Monochrome / Color
Temporal Noise < 2.2 e- @25°C
Full Well Charge 9828 e-
Dynamic Range > 70.8dB @520nm
Signal-to-Noise Ratio (SNR max) 40 dB @520nm
Quantum Efficiency (QE) X FF > 63% @525nm
Shortest Exposure 10 µs
On Camera Processing Defect pixel correction
Auto/Manual White balance
ROI
Image flip
Frame counter
LUT
Flat field / Fixed patter noise correction
Gain (Analog / Digital)
Auto/Manual black level
Binning
Auto Exposure/Gain
Operational Time Counter
GPIO Connection Two inputs, two outputs, external trigger & strobe controller (optional)
Dimensions (including lens mount) 44 mm x 44 mm x 35.3 mm (Height x Width x Depth)
Lens Mount C-mount, CS-mount
Weight (without lens) ~50g
Power Input PoCXP full support (11-28V with external power option)
Power Consumption <3.2W @ 24V DC
Operating Temperature -40°C to 70°C, 10-90% humidity (non-condensing)
Storage Temperature -40°C to 75°C, 10-90% humidity (non-condensing)
Ingress Protection Optional IP67 (with protective lens tube)
Operational Shock Tested per MIL-STD-810G Method 516.6, 3-axis Shock 75G
Operational Vibration Tested per MIL-STD-810G Method 514.6, 3-axis Vibration Category 20
